- High-performance, high-density system solution in a truck-pack friendly format
- High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
- Built-in, passively cooled Class D amplification with a universal power supply
- Dual Ethernet ports with Neutrik etherCON connectors
- Supports HARMAN HControl Ethernet
- User-controllable DSP
- LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
- Rear-panel LCD provides complete access to control features
- Reinforced composite loudspeaker enclosures

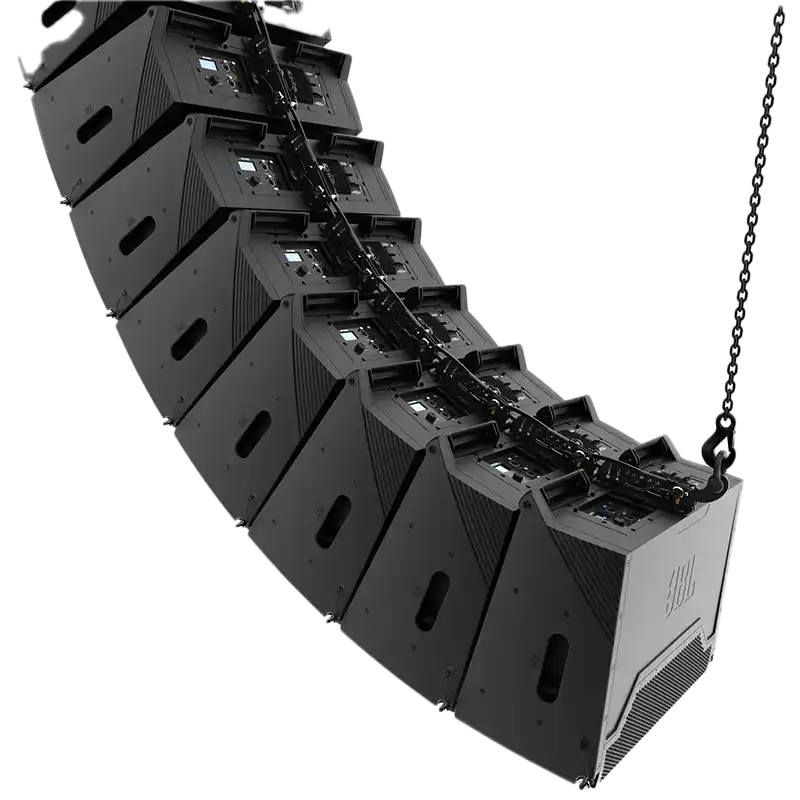

- Innovative three-point rigging system
Line Array LoudSpeakers
JBL SRX910LA
Dual 10-inch Powered Line Array Loudspeaker
The SRX900 Series embodies the advanced performance principles that drive JBL’s development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.
The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.
JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 10-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.
An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. JBL Performance is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.
| ACOUSTICAL | |
| Frequency Range
(-10 dB) : (-3 dB) : |
53 Hz-19 kHz (array preset) 60 Hz-18 kHz (array preset) |
| Coverage Pattern (-6 dB)
Horizontal: Vertical: |
105 degrees nominal (400 Hz-16 kHz) Varies with array size and configuration |
| Maximum Peak Output1: | 135 dB |
| System Type : | Line Array, two-way active |
| TRANSDUCERS | |
| Low Frequency : | (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive® |
| High Frequency : | (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil |
| AUDIO INPUT | |
| Input Type : | Balanced line level |
| Connectors : | (2) Neutrik XLR (IN/OUT) |
| Nominal Input Sensitivity : | +6 dBu (system starts limiting with broadband noise and music) |
| Maximum Input Level : | 21 dBu |
| Input Impedance : | 100 kΩ |
| Number of Channels : | (2) | |
| Continuous Power2 : | 600 Watts | LF: 400 Watts | HF: 200 Watts |
| Peak Power3 : | 880 Watts | LF: 580 Watts | HF: 300 Watts |
| DSP | |
| Sample Rate | 48 kHz |
| Bit Depth : | 24 bit |
| USER INTERFACE | |
| Type : | LCD screen, encoder, Back button, (4) LED Indicators (3 single, 1 bi-color) |
| NETWORKING | |
| Type : | TCP/IP |
| Protocol : | Harman HControl |
| Speed : | Dual 100 Mbps ports |
| Connectors : | (2) Neutrik etherCON® |
| AC POWER | |
| Voltage Range
Nominal : Limits : |
100-240 VAC, 50/60 Hz 80-260 VAC, 50/60 Hz |
| Connectors : | Dual (IN/OUT) Neutrik powerCON TRUE1 TOP® |
| CURRENT DRAW | ||||
| 120 V | 208 V | 240 V | ||
| Idle : | 0.3 A | 0.2 A | 0.2 A | |
| Standby : | 0.2 A | 0.1 A | 0.1 A | |
| Continuous4 : | 1.9 A | 1.1 A | 1.0 A | |
| Maximum Instantaneous Peak5 : | 7.0 A | 6.4 A | 6.2 A | |
| Peak Inrush6 : | 2.2 A | 3.6 A | 4.3 A | |
| PHYSICAL | |
| Enclosure : | Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds |
| IP Rating7 : | IP54 |
| Suspension : | Three-point, captive suspension plates, quick release pins, steel with anti-corrosion coating |
| Inter-enclosure Angle (deg) : | 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Grille : | Powder coated 1.5 mm (16-gauge) hex perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) : | 305 mm x 716 mm x 519 mm
12.0 in x 28.2 in x 20.5 in |
| Net Weight : Shipping Weight : | 26.7 kg (59 lbs)
30.3 kg (67 lbs) |
| ORDERING INFORMATION | |
| SKU : | JBL-P3234MX | SRX910LA for Global JBL-P3247MXCN | SRX910LA for China |
| Included : | (1) SRX910LA | (1) Neutrik NAC3FX-W-TOP | (1) Neutrik NAC3MX-W-TOP |
Footnotes:
1: Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12 dB crest factor and specified preset
2: Bench power: ≥1 sec, 1 kHz, 120 VAC, no DSP, all channels driven
3: Burst power: ≥20 ms, 1 kHz, 120 VAC, no DSP, all channels driven
4: System test using IEC shaped pink noise with 9 dB crest factor. System at maximum output without clipping or limiting. Ambient temperature: 20° C. Duration:
5 sec. 5: Two-tone, all channels driven, IMD test at maximum power and a duration of 200 ms.
6: Measured RMS inrush current for a 50 ms window.
7: With use of SRX900 RC1 rain cover (JBL-P3239MX ) and front face at -10 degrees or greater down angle to allow the cabinet to drain water. Suspension components fully weather rated for indoor or covered outdoor conditions where humidity is nominally under 50% and not local to bodies of corrosive materials.
