The VRX915M is a dedicated, compact and lightweight 15″ two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL’s latest neodymium-magnet transducers.
Frequency Range (-10 dB): 60 Hz – 20 kHz
Frequency Response (±3 dB): 70 Hz – 20 kHz
Coverage Pattern: 50° x 90° nominal Crossover Modes: Passive / Bi-amp
Crossover Frequency: 1.1 kHz
Differential Drive® woofer handles 800 watts (continuous) and delivers accurate and precise low frequency reproduction. The 2452H 102 mm (4 in) voice-coil compression driver is coupled to a 50°x 90° aluminum horn to provide smooth and clear high frequency reproduction, critical for high performance monitoring.
Bi-amp or full-range passive operation may be selected via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimizing cable runs on stage.

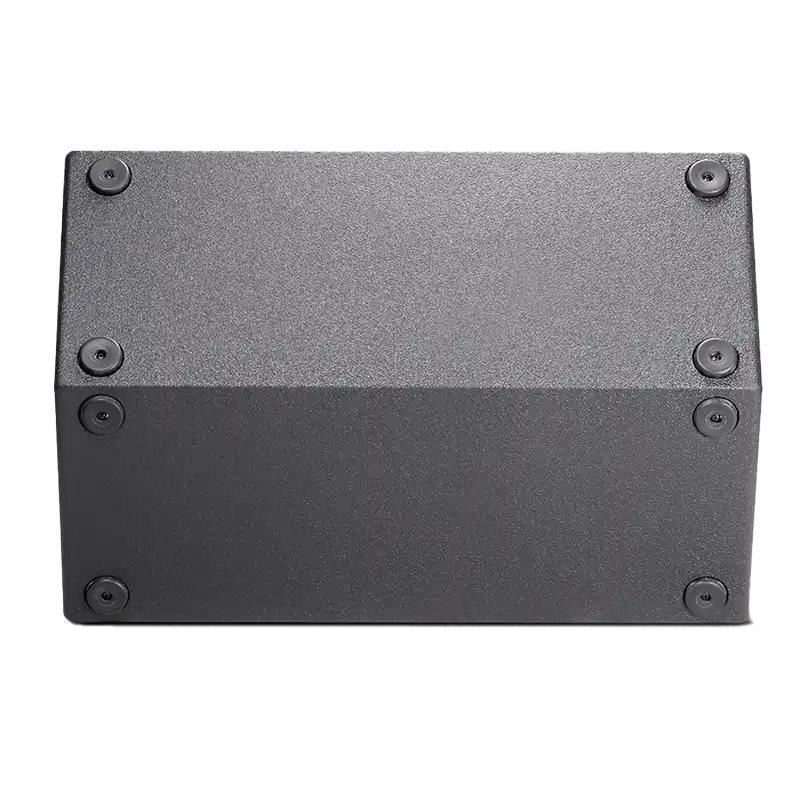

The enclosure is constructed of top quality Baltic birch plywood and is coated in JBL’s rugged DuraFlex™ finish. It is a symmetrical 30° wedge design, with four non-slip rubber feet per side enabling convenient left and right applications of adjacent monitors. The transducers are protected by an attractive 16 gauge CNC-machined steel grille. It is internally lined with acoustically transparent foam to provide additional transducer protection.
Power Rating: Passive Full-Range 800 W / 1600 W / 3200W, 2 hrs1 (Continuous / Program / Peak) 600 W / 1200 W / 2400W, 100 hrs1
Power Rating: Bi-amp LF: 800 W / 1600 W / 3200 W, 2 hrs1 (Contiuous / Program / Peak) 600 W / 1200 W / 2400 W, 100 hr1
Power Rating:
(Continuous / Program / Peak) Bi-amp HF: 75 W / 150 W / 300 W, 2 hrs1
Maximum SPL: 127 dB SPL continuous (133 dB SPL peak)2 System Sensitivity (1w @ 1m): 98 dB SPL
LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms
HF Driver: 1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm (1.5 inch) exit, neodymium magnet compression driver
8 Ohms
Nominal Impedance: 8 Ohms
Active Tunings: Settings available at http://www.jblpro.com/tunings/index.htm Enclosure: Symmetrical stage monitor, 15/18 mm, plywood.
Transport: 2x Integrated handle / input cup Finish: Black DuraFlex™ finish
Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing.
Input Connectors: Neutrik® Speakon® NL-4 (x2), one on each end Dimensions (H x W x D): 629 mm x 432 mm x 324 mm (375 mm stage height)
24.75 in x 17 in x 12.75 in (14.75″ stage height)
Net Weight: 21 kg (46.0 lb)
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
