Line Array LoudSpeakers

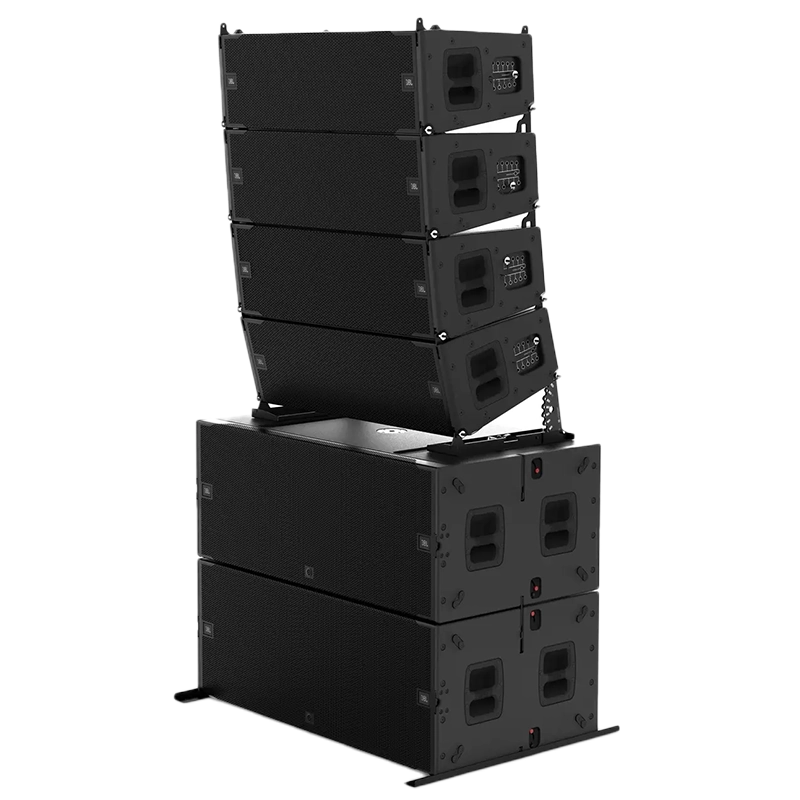

JBL VTX A12

Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

Next Generation Dual 12″ Line Array Loudspeaker

JBL VTX A12 is a complete tour sound solution for mid-to-large size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers, and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity, and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.

SYSTEM
Frequency Range (-10 dB): 46 Hz – 19 kHz (Preset: VTX A12)
Coverage Pattern (-6 dB)

Horizontal: Vertical:



90 degrees nominal (250 Hz – 18 kHz) Varies with array size and configuration
System Input Power Rating1

LF:

MF:

HF:





2x 800W Continuous (IEC/100 hour)

400W Continuous (IEC/100 hour)

150W Continuous (IEC/100 hour)
Maximum Peak Output²: 146 dB (Preset: VTX A12)
System Amplification: Crown I-Tech 9000HD Crown I-Tech 12000HD Crown I-Tech 4x3500HD
Required Amplifier Channels: (4) channels (LF|LF|MF|HF)
Number of Cabinets per Circuit: (3) VTX A12
System Impedance: LF: 2x 8 ohms | MF: 8 ohms | HF: 8 ohms
TRANSDUCERS
Low Frequency : (2) JBL 2264H, 12 in diameter, dual 3 in diameter voice coil, Neodymium Differential Drive®
Mid Frequency : (4) JBL 2165H, 5.5 in diameter, dual 2 in diameter voice coil, Neodymium Differential Drive®
High Frequency : (3) JBL 2423K, 2 in diameter annular diaphragm, 2 in diameter voice coil, Neodymium compression drivers
ENCLOSURE
Construction : 15 mm 11-ply Finnish birch plywood, Black DuraFlexTM finish, four integral recessed handles
IP Rating3 : IP55 EN (60529)
Suspension : High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mech- anism for setting angles
Inter-enclosure Angle (deg) : 0.25, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10
Grill : Powder coated 1.8 mm (14-guage), hex-perforated steel with acoustically transparent black cloth backing
Connectors

Type : Pin Assignments :



(2) Neutrik® speakON® NL-8 Pins 1 ± (LF), Pins 2 ± (LF), Pins 3 ± (MF), Pins 4 ± (HF)
Dimensions (H x W x D) : 330 mm x 1118 mm x 495 mm

13 in x 44 in x 19.5 in
Net Weight : 60.8 kg (134 lbs)
