- Elegant, low profile, compact design suitable for touring and high profile broadcast applications
- State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
- 60×60 High Frequency Waveguide featuring JBL’s patented Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Floor Monitor

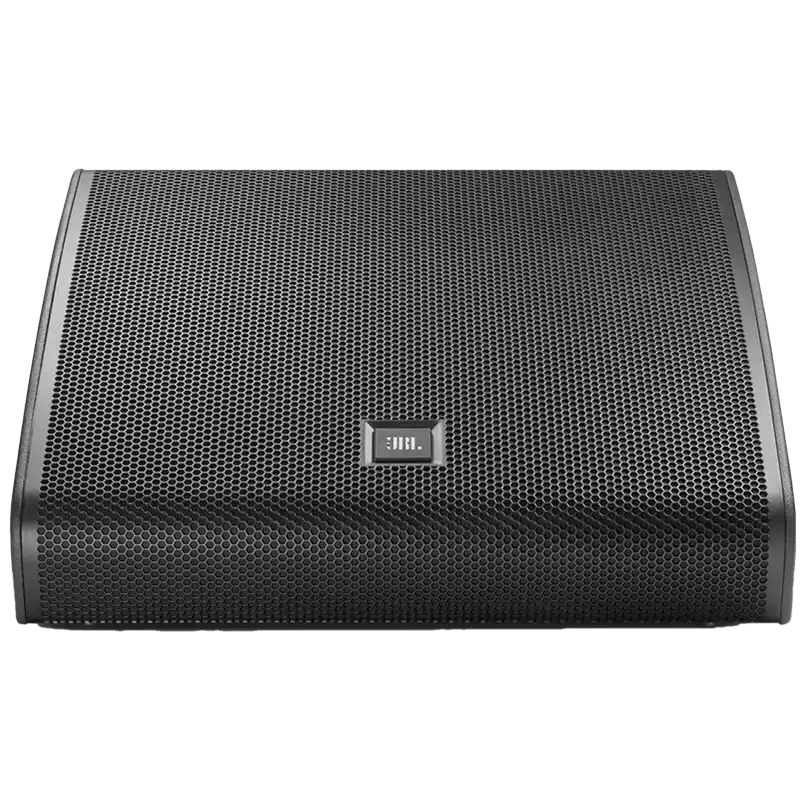

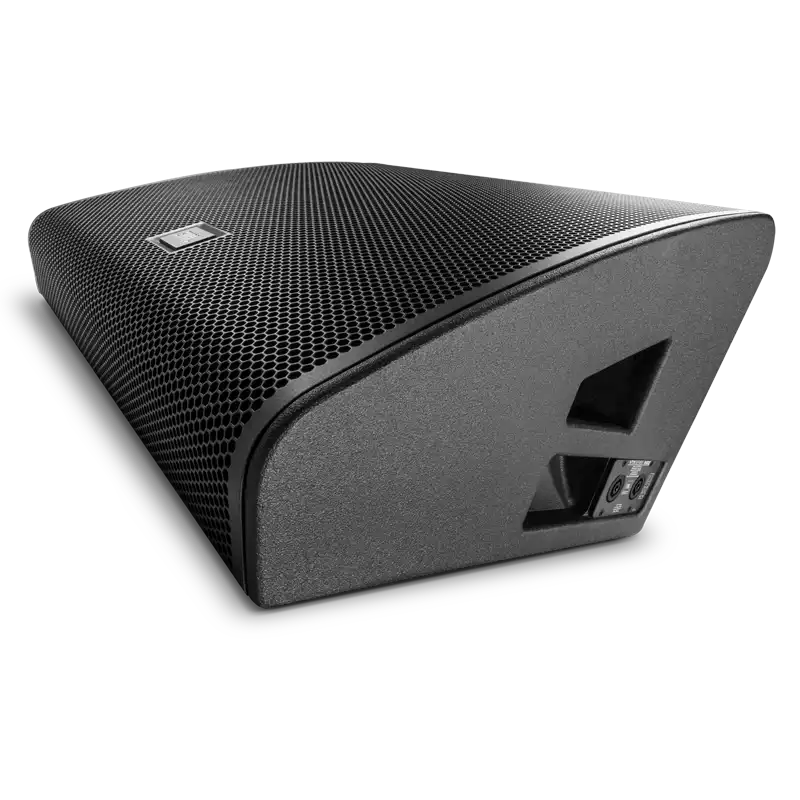

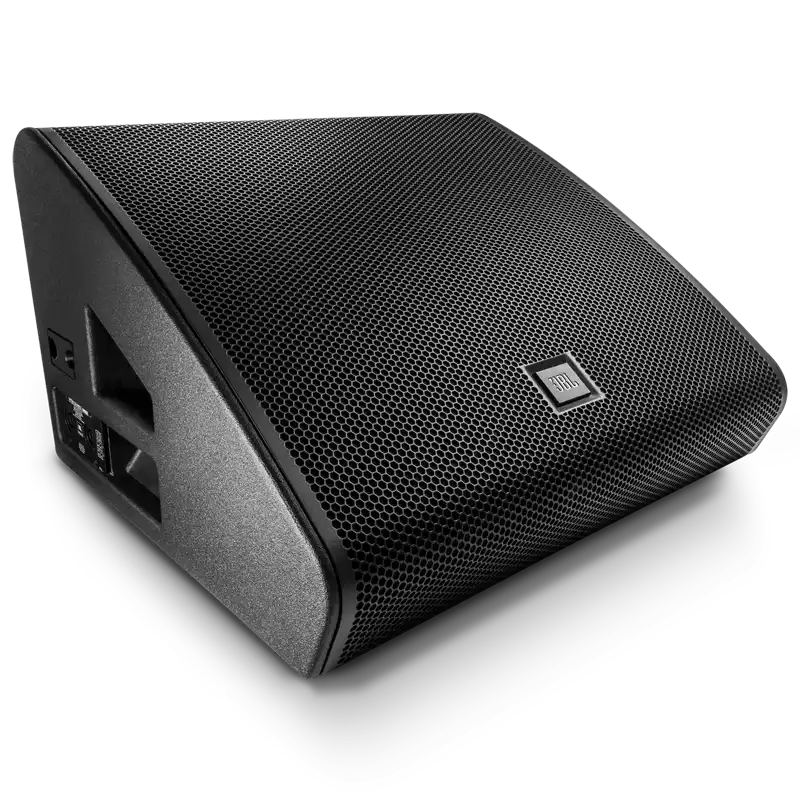

JBL VTX M22
Dual 12-inch Professional Stage Monitor
VTX M Series is comprised of the dual 10” VTX M20 and the dual 12” VTX M22 professional stage monitors, both featuring highperformance differential drive woofers and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. The option of
Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option
for the application, with no compromise in output power or performance. Drawing on JBL’s unique history of sharing technological
innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which gives both the
VTX M20 and VTX M22 a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium,
tour-ready features are enclosed in a pair of modern, low profile designs that are lightweight, ergonomic, and show-ready for even
the most high profile concert or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL
HiQNet Performance Manager with V5 presets.
System
Frequency Range (-10 dB): 45 Hz – 19.5 kHz
Transducers
Low Frequency: 2 x 2262H, 304 mm (12 in) diameter, dual
76 mm (3 in) diameter voice coil, NDD ®,
Coverage Pattern (-6dB)
Horizontal:
Vertical:
System Input Power Rating1
Passive:
Active:
60
60
1500 W Continuous (IEC / 100 hour)
LF: 1500 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour)
Direct Cooled ™
High Frequency: 1 x D2430H, D2 dual diaphragm, dual
76mm (3 in) diameter voice coil
Enclosure
Monitor Angle:: 30 degrees
Construction: 18 mm, 11-ply Finnish birch plywood
Grille: Powder Coated 14 gauge hex-perforated
Maximum Peak Output²: 138dB (Preset: VTX M22 FR)
System Latency3: 3.33ms
System Processing: Crown Audio I-Tech HD Series
Crown Audio I-Tech 4x3500HD
System Impedance
Input Connectors
Passive:
Active:
steel with acoustically-transparent black cloth backing

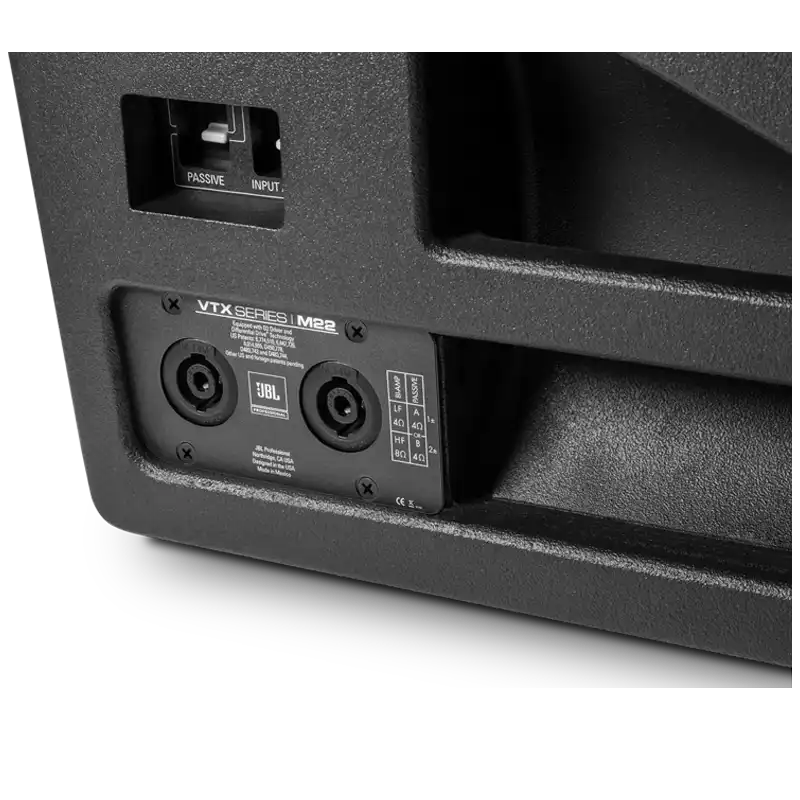

Neutrik ® Speakon ® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Neutrik ® Speakon ® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
Passive:
Active:
4 ohms
LF: 4 ohms
HF: 8 ohms
Dimensions (H x W x D): 380.1 mm x 670.8 mm x 555.0 mm
(15.0 in x 26.4 in x 21.8 in)
Net Weight: 27 kg (60 lbs)
